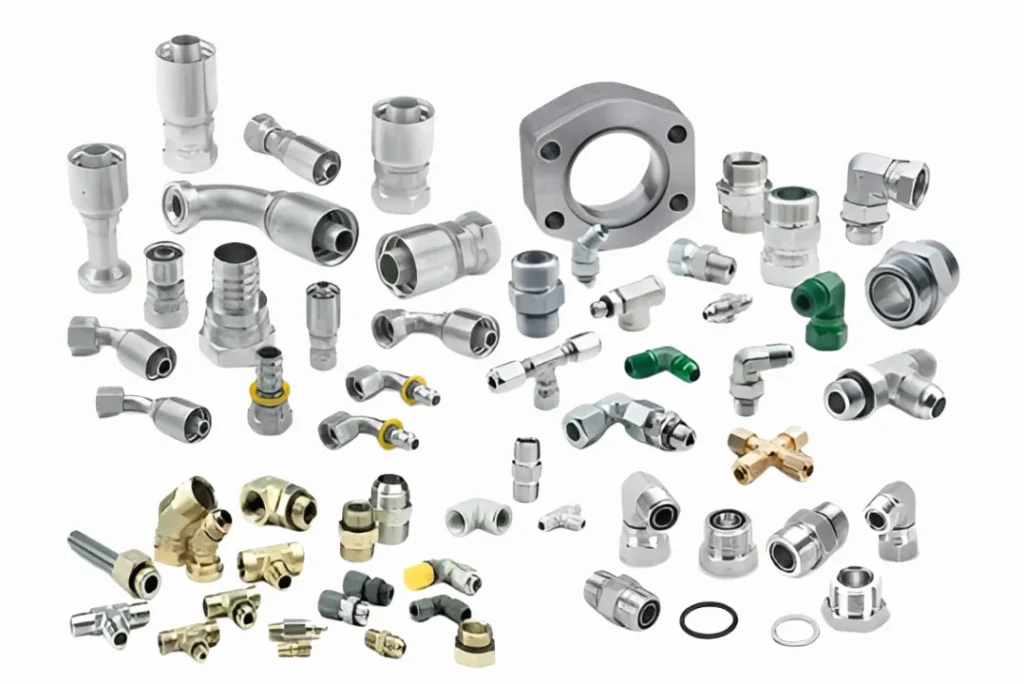

Hydraulic End Fittings

Hydraulic End Fittings are critical components used to connect hydraulic hoses to pumps, valves, cylinders, and other system equipment. They ensure a secure, leak-proof, and pressure-resistant connection within hydraulic systems.

Proper selection of end fittings is essential to maintain system efficiency, safety, and durability—especially in high-pressure, high-temperature, and vibration-prone environments.

Hydraulic end fittings are available in various connection standards, sealing methods, and materials to meet diverse industrial and international requirements.

Fitting Types by Connection Method / Standard

JIC Fittings (Joint Industry Council)

  • Utilize a 37° flare seating surface.
  • Provide a metal-to-metal seal.
  • Known for reliability and ease of assembly.
  • Widely used in hydraulic systems across industrial and mobile equipment applications.

ORFS Fittings (O-Ring Face Seal)

  • Feature a flat face with an O-ring that compresses against a mating flat surface.
  • Offer superior leak prevention.
  • Ideal for high-pressure and high-vibration systems.
  • Common in heavy-duty hydraulic machinery.

NPT / NPTF Fittings

  • Use tapered threads to create a seal through thread deformation.
  • Commonly used in North America.
  • Suitable for low to medium pressure applications.
  • Often require thread sealant for optimal performance.

BSPP / BSPT Fittings

  • British standard thread types widely used in Europe and Asia.
  • BSPP uses a parallel thread with sealing washer or O-ring.
  • BSPT uses tapered threads for sealing.
  • Popular in international hydraulic systems.

SAE Fittings (Society of Automotive Engineers)

  • Include various configurations such as ORB (O-Ring Boss) and JIC.
  • Often feature a 45° flare connection.
  • Common in automotive and fuel system applications.
  • Suitable for lower to medium pressure systems.

Metric Fittings

  • Designed with metric threads.
  • Common in European hydraulic equipment.
  • Often use O-ring sealing for enhanced leak protection.
  • Ensure compatibility with metric-based systems.

Flange Fittings (Code 61 & Code 62)

  • Used for larger diameter hoses.
  • Designed for high-pressure and high-vibration environments.
  • Utilize a bolted flange with an O-ring groove for secure sealing.
  • Common in heavy industrial and construction machinery.

Quick-Disconnect Couplings (Quick Couplers)

  • Enable fast and tool-free connection and disconnection.
  • Available in flat-face and poppet valve designs.
  • Improve maintenance efficiency and reduce fluid loss.
  • Common in mobile hydraulic systems.

Elbow Fittings

  • Available in 45° and 90° angles.
  • Used to change the direction of fluid flow.
  • Help optimize hose routing in confined spaces.

Cross Fittings

  • Allow connections in four different directions.
  • Used in complex hydraulic circuits.
  • Facilitate multi-line fluid distribution.
Installation

In order to get satisfactory service and longer life from stainless steel flexible hose, the hoses assembly should be installed in the right manner. The bending a hose assembly, particularly at the welded ends, stressed and twisted mounting and excessive fatigue are main causes of premature failure. See installation chart for proper guide how to avoid mistake.

Not Suggested

Dimension the hose adequately

Avoid excessive bending of the hose

Do not allow the hose to sag

Do not move the hose obliquely to the installation plane

Avoid torsional twist when fittings are not in line

Avoid torsion due to Angular movements

Suggested

Take care that the flexible length is not too short

Use pipe bends

Use a support

Movement should be along

Install in one plane only

All movements should be only along the axis of the hose
