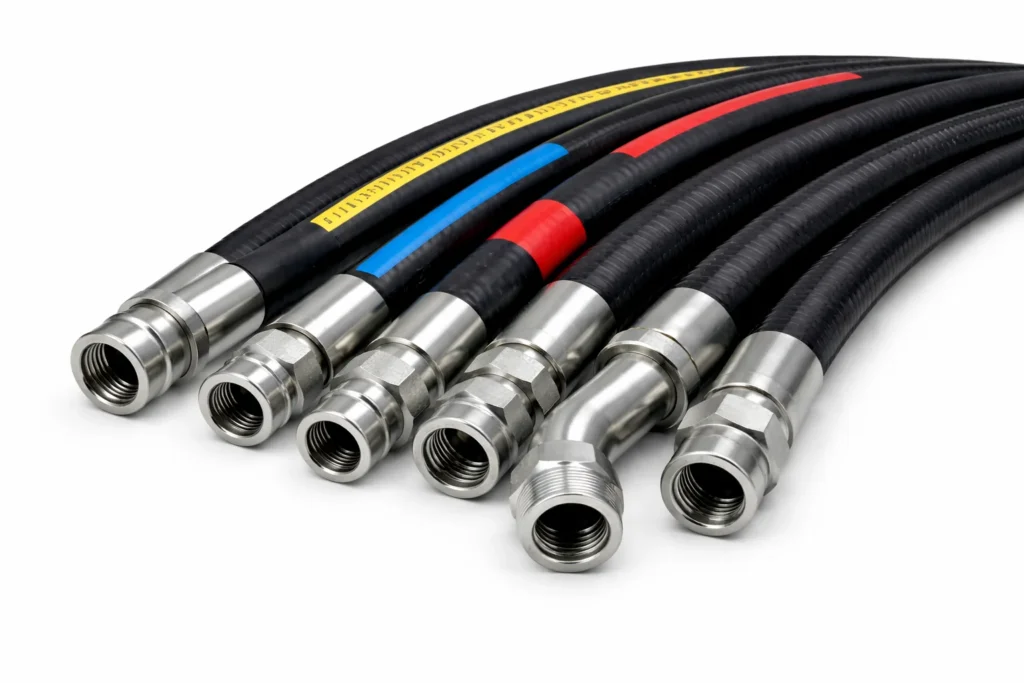

Hydraulic and pneumatic rubber hoses are specifically engineered for the efficient and safe transmission of fluids and compressed air in high-pressure and high-impulse operating conditions. These hoses are manufactured using high-quality synthetic rubber compounds reinforced with textile or steel wire braiding to ensure superior strength, flexibility, and long-term durability.
Designed to withstand pressure surges, vibration, abrasion, and varying temperature ranges, hydraulic and pneumatic rubber hoses play a critical role in maintaining the reliability and efficiency of fluid power systems. Their robust construction helps prevent leakage, hose failure, and system downtime, even in demanding industrial environments.
Proper hose selection, routing, and installation are essential to ensure optimal system safety and performance. When correctly specified and installed, these hoses deliver consistent flow, reduced energy loss, and extended service life across a wide range of applications, including manufacturing, construction, agriculture, mining, material handling, and industrial machinery.
| Hose Size | Maximum Working Pressure | ||
|---|---|---|---|
| inch | I.D. (mm) |
psi | bar |
| 1/4 | 6.4 | 3265 | 225 |
| 5/16 | 7.9 | 3120 | 215 |
| 3/8 | 9.5 | 2610 | 180 |
| 1/2 | 12.7 | 2320 | 160 |
| 5/8 | 15.9 | 1890 | 130 |
| 3/4 | 19 | 1525 | 105 |
| 1 | 25.4 | 1275 | 88 |
| 1 1/4 | 31.8 | 915 | 63 |
| 1 1/2 | 38.1 | 725 | 50 |
| 2 | 50.8 | 580 | 40 |
| Hose Size | Maximum Working Pressure | ||
|---|---|---|---|
| Inch | I.D. (mm) |
psi | bar |
| 1/4 | 6.4 | 5800 | 400 |
| 5/16 | 7.9 | 5100 | 350 |
| 3/8 | 9.5 | 4750 | 330 |
| 1/2 | 12.7 | 4000 | 276 |
| 5/8 | 15.9 | 3600 | 250 |
| 3/4 | 19 | 3100 | 215 |
| 1 | 25.4 | 2400 | 165 |
| 1-1/4 | 31.8 | 1800 | 125 |
| 1-1/2 | 38.1 | 1300 | 90 |
| 2 | 50.8 | 1160 | 80 |
| Hose Size | Maximum Working Pressure | ||
|---|---|---|---|
| inch | I.D. (mm) |
psi | bar |
| 3/4 | 19.0 | 5000 | 345 |
| 1 | 25.4 | 5000 | 345 |
| 1-1/4 | 31.8 | 5000 | 345 |
| 1-1/2 | 38.1 | 5000 | 345 |
| 2 | 50.8 | 5000 | 345 |
| Hose Size | Maximum Working Pressure | ||
|---|---|---|---|
| inch | I.D. (mm) |
psi | bar |
| 3/4 | 19.0 | 6000 | 414 |
| 1 | 25.4 | 6000 | 414 |
| 1-1/4 | 31.8 | 6000 | 414 |
| 1-1/2 | 38.1 | 6000 | 414 |
| Hose Size | Maximum Working Pressure | ||
|---|---|---|---|
| inch | I.D. (mm) |
psi | bar |
| 3/8 | 10.0 | 6500 | 448 |
| 1/2 | 12.5 | 6000 | 414 |
| 5/8 | 16.0 | 5000 | 345 |
| 3/4 | 19.0 | 5000 | 345 |
| 1 | 25.4 | 4000 | 276 |
| Hose Size | Maximum Working Pressure | ||
|---|---|---|---|
| inch | I.D. (mm) |
psi | bar |
| 3/4 | 19.0 | 6000 | 414 |
| 1 | 25.4 | 5500 | 379 |
| 1-1/4 | 31.8 | 4700 | 324 |
| 1-1/2 | 38.1 | 4200 | 290 |
| 2 | 50.8 | 3600 | 248 |
