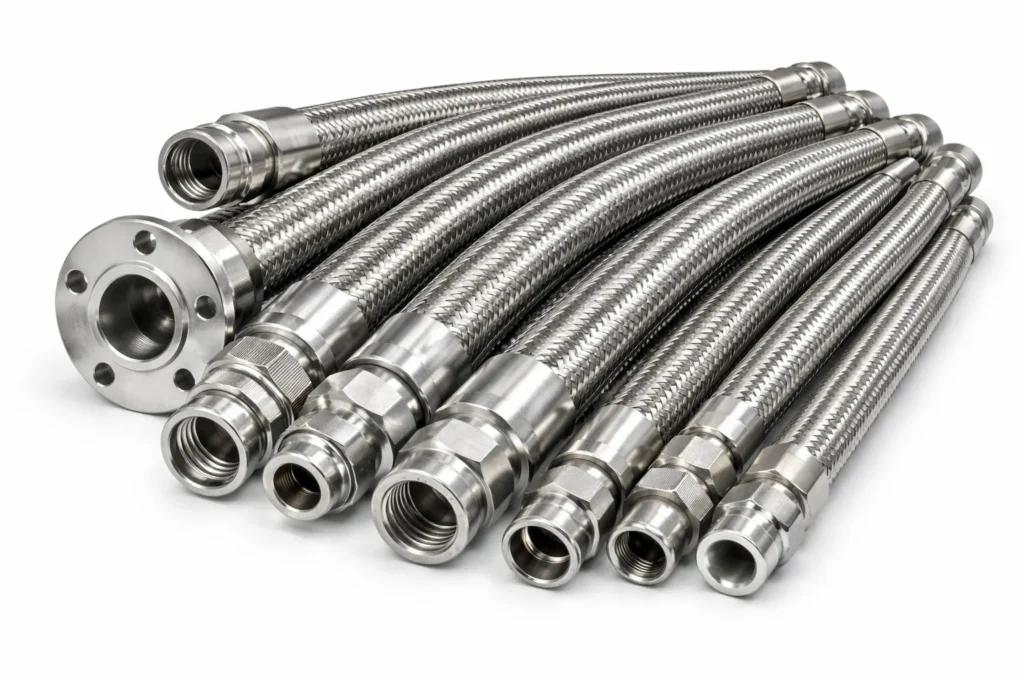

Stainless Steel Metallic Flexible Hoses

Stainless Steel Metallic Flexible Hoses are engineered to perform reliably in high-pressure and high-temperature industrial applications where flexibility, strength, and long service life are essential. Manufactured using premium-grade stainless steel, these hoses provide excellent resistance to corrosion, abrasion, and extreme operating conditions.

Designed to absorb vibration, thermal expansion, and misalignment, metallic flexible hoses help protect connected equipment and piping systems from stress and fatigue failure. Their flexible construction allows easy installation in confined spaces while maintaining structural integrity under continuous pressure and temperature fluctuations.

These hoses are widely used in demanding environments such as chemical processing plants, power generation facilities, oil & gas installations, refineries, and heavy engineering industries. Suitable for conveying liquids, gases, steam, and aggressive media, stainless steel metallic flexible hoses ensure safe, leak-free performance even in the most challenging industrial conditions.

Hose Construction Types

Single Wire Braided Hose

Double Wire Braided Hose

Annular Corrugated Hose

Material Grades

SS 304

Water, steam, oil applications

SS 316 / 316L

Chemical, chloride, and Corrosiol

SS 321

High-temperature resistance

End Fittings Options

Threaded Connections

Flange Connections

Special Connections

Material Grades

Pressure Rating

Working pressure values defined for safe and reliable operation.

Burst Pressure

Burst pressure is 4× the maximum working pressure.

Temperature Reference

All pressure values apply at 20°C ambient temperature.

Custom Pressure Options

Higher pressure ratings available on request.

Single Wire Braided & Double Wire Braided Table

Nominal Size	DN (mm)	Without Braid		Single Braid		Double Braid		Min Bend Radius Static (mm)	Min Bend Radius Flexing (mm)
Nominal Size	DN (mm)	Max WP (Kg/cm²)	Test (Kg/cm²)	Max WP (Kg/cm²)	Test (Kg/cm²)	Max WP (Kg/cm²)	Test (Kg/cm²)	Min Bend Radius Static (mm)	Min Bend Radius Flexing (mm)
1/4"	6	4	6	100	150	160	240	25	110
5/16"	8	4	6	100	150	160	240	32	130
3/8"	10	4	6	90	135	144	216	38	150
1/2"	12	3	4.5	80	120	128	192	45	165
5/8"	16	3	4.5	70	105	112	168	58	195
3/4"	20	2	3	64	96	102	153	70	225
1"	25	2	3	50	75	80	120	85	260
1 1/4"	32	1.5	2.3	40	60	64	96	105	300
1 1/2"	40	1.5	2.3	30	45	48	72	130	340
2"	50	1	1.5	28	42	44	66	160	390
2 1/2"	65	1	1.5	24	36	38	57	200	460
3"	80	1	1.5	18	27	28	42	240	660
4"	100	0.8	1.2	16	24	26	39	290	750
5"	125	0.6	0.9	12	18	20	30	350	1000
6"	150	0.6	0.9	10	15	16	24	400	1250
8"	200	0.5	0.75	8	12	12	18	520	1600
10"	250	0.25	0.36	6	9	9	14	620	2000
12"	300	0.20	0.30	4	6	6	9	720	2400

Note

The above details are Subject to change without notice.
We can also Supply the above hoses for higher pressures.
The above values apply only to braided hoses and assemblies at ambient temperature of 20 Deg. C.
The burst pressure is 4 times of the max. Working pressure.

Temperature Correction Factor

Temperature Range (°C)	Derating Factors "f", Material
Temperature Range (°C)	1.4541 (SS321)	1.4304 (SS304)	1.4404 (SS316L)	1.4306 (SS304L)	Carbon Steel
-200 to -20	1	1	1	1	1
20	1	1	1	1	1
50	0.92	0.88	0.88	0.87	0.97
100	0.83	0.73	0.74	0.72	0.91
150	0.78	0.66	0.67	0.65	0.84
200	0.74	0.60	0.62	0.59	0.77
250	0.71	0.56	0.58	0.55	0.71
300	0.67	0.52	0.54	0.51	0.65
350	0.64	0.50	0.52	0.48	0.60
400	0.62	0.48	0.50	0.46	0.57
450	0.61	0.47	0.48	0.45	0.29
500	0.60	0.46	0.47	0.44	0.18
550	0.59	0.42	0.47	0.43	-
600	-	-	-	-	-
650	-	-	-	-	-

Note

Where hose are required to work at higher temperature, the working pressure given in Table-1 should be multiplied by the correction factor. This will determine the pressure rating of the hoses at the higher temperature.
